videointercom • NEW

DS-KV9503-WBE1

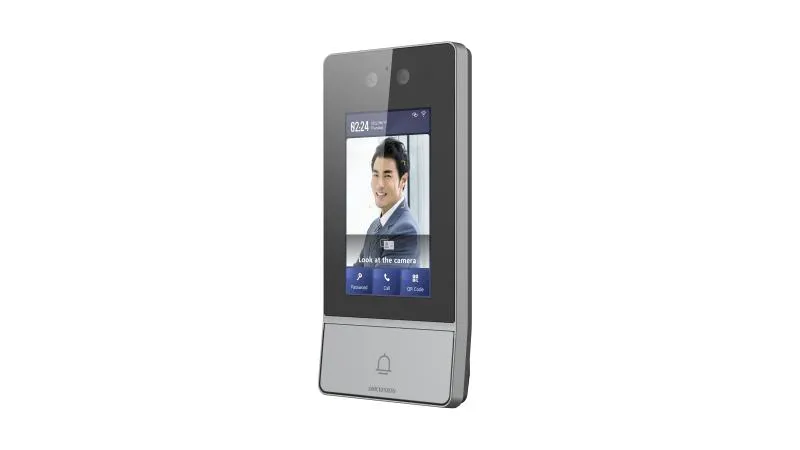

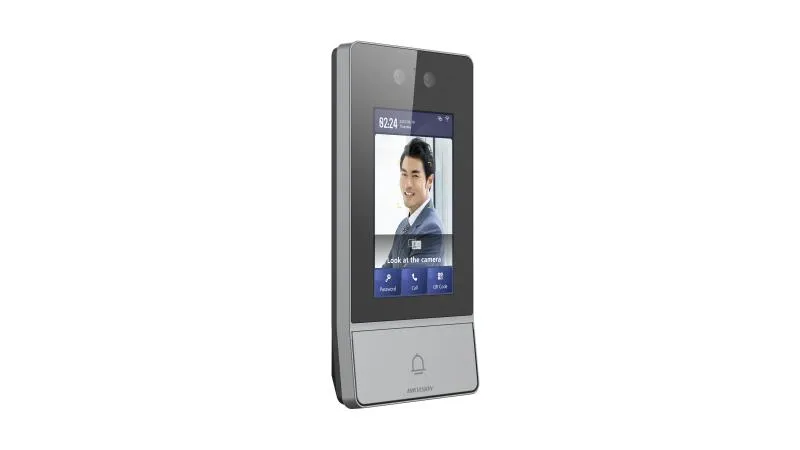

Vandal-Resistant Facial Recognition IP Villa Door Station

DS-KV9503-WBE1
DS-KV9503-WBE1 1
DS-KV9503-WBE1 2
DS-KV9503-WBE1 3

Product Features

1

4.3-inch color LCD screen with 800 × 480 resolution

2

Dual 2 MP cameras with IR for enhanced visibility

3

One-touch physical call button for easy operation

4

Standard PoE power supply

5

Durable IK08 & IP65-rated metal housing

6

Multi-authentication: Face, PIN, Card, QR code, Bluetooth

7

Direct call to Hik-Connect app without indoor station

Request Information

Technical Specifications

Operation systemLinux
ROM4 GB
RAM1 GB
ProcessorEmbeded high performance processor
Screen size4.3-inch
Operation methodCapacitive touch screen
TypeIPS
Resolution800 × 480
Luminance425 cd/m²
Lens2
Resolution2 × 2 MP
FOVHorizontal: 88°, Vertical: 44°
Wide dynamic range WDRSupport 120 dB
Supplement lightIR light, up to 3 m
Video compression standardMain stream and sub stream: H.264; Third stream: H.265
Audio input1 built-in omnidirectional microphone
Audio compression standardG.711u、G.711a、Opus、AAC-LD、AAC-LC、G.726、G.722.1
Audio output1 built-in loudspeaker
Audio compression bitrateG.711u、G.711a、Opus：64kbps；G.722.1、G.726：32kbps；AAC-LD、AAC-LC：16kbps
Audio qualityNoise suppression and echo cancellation
Volume adjustmentAdjustable
