videointercom • NEW
DS-KD-TDE

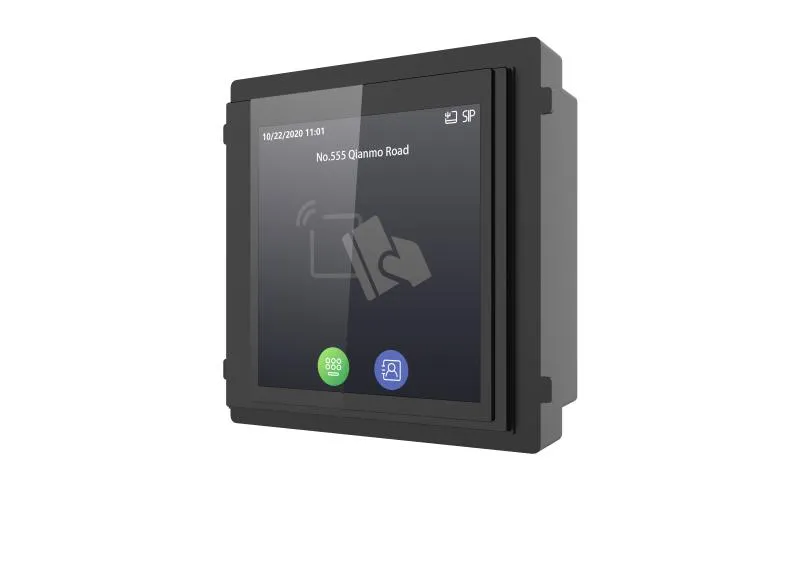

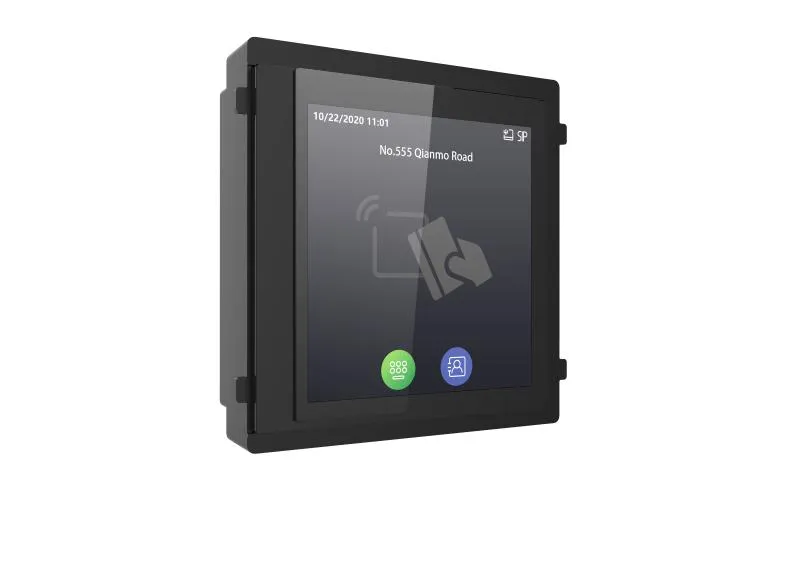

Touch Display Module with EM Card Reader
Product Features
1
4-inch touch display with EM card reader for modular door station
2
Displays dial pad, PIN unlock, contact list, and advertisements
3
Stores up to 2000 contacts for easy access
4
Rugged design with IP65 water/dust resistance and IK08 impact protection
5
Multi-language support for global usability
Technical Specifications
| Operation system | Linux |
| ROM | 32 MB |
| RAM | 128 MB |
| Screen size | 4-inch |
| Type | IPS |
| Resolution | 480 × 480 |
| Brightness | Adjustable, Max.500 cd/m2 |
| Audio input | / |
| Audio compression standard | / |
| Audio output | 1 buzzer |
| Audio compression bitrate | / |
| Audio quality | / |
| Volume adjustment | / |
| Loudspeaker consumption | / |
| Wireless network | AP mode |
| Card reading frequency | 125 KHz |
| Card reading distance | 2 cm |
| Card type | EM card |
