turbohd • NEW

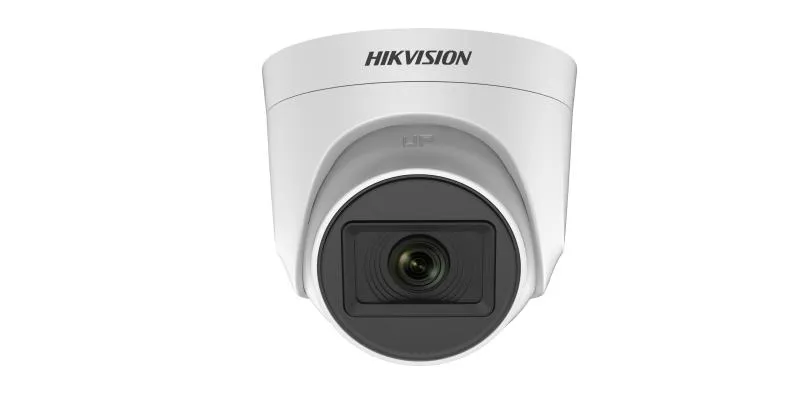

DS-2CE76D0T-EXIPF
2 MP Indoor Fixed Turret Camera
Product Features
1
2 MP resolution with 1920 × 1080 high quality imaging
2
2.8 mm or 3.6 mm fixed lens options
3
Up to 20 meters IR distance for enhanced night vision
4
Supports TVI, AHD, CVI, and CVBS video signals
5
Reliable performance with one-port four-signal switching
Technical Specifications
| Image Sensor | 2 MP CMOS |
| Signal System | PAL/NTSC |
| Max Resolution | 1920 (H) × 1080 (V) |
| Min Illumination | 0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Day and Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| Lens Type | 2.8 mm, 3.6 mm Fixed Lens |
| Focal Length and FOV | 2.8 mm: horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5° 3.6 mm: horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0° |
| Lens Mount | M12 |
| Supplement Light Range | Up to 20 m |
| Frame Rate | TVI: 1080p@25fps/30fps; AHD: 1080p@25fps/30fps; CVI: 1080p@25fps/30fps; CVBS: PAL/NTSC |
| Wide Dynamic Range | Digital WDR |
| Image Parameters Switch | STD/HIGH-SAT |
| Day Night Mode | Auto/Color/BW (Black and White) |
| White Balance | Auto |
| Image Enhancement | DWDR, BLC, Global |
| Noise Reduction | 2D DNR |
| Image Settings | Brightness, Mirror, Smart IR, Sharpness, AGC |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| Language | English |
| Operating Condition | -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing) |
| Material | Plastic |
| Communication | HIKVISION-C |
| Dimension | Φ 84.6 mm × 78.9 mm (Φ 3.33" × 3.11") |
| Weight | Approx. 195 g (0.43 lb.) |
| Power | 12 VDC ± 25%, Max. 3.3 W |
