turbohd • NEW
DS-2CE10KF0T-LPFS

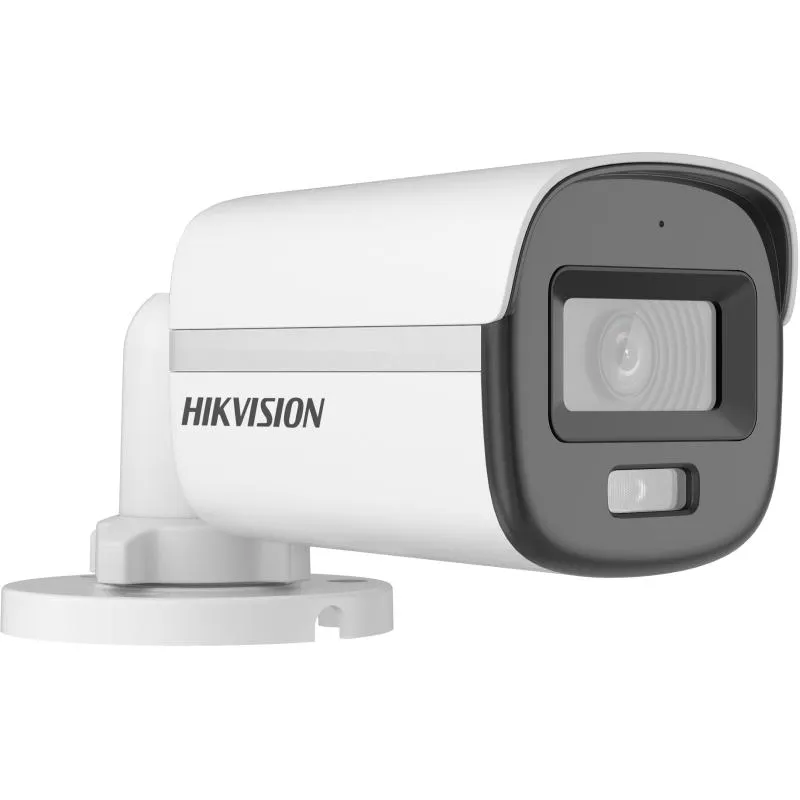

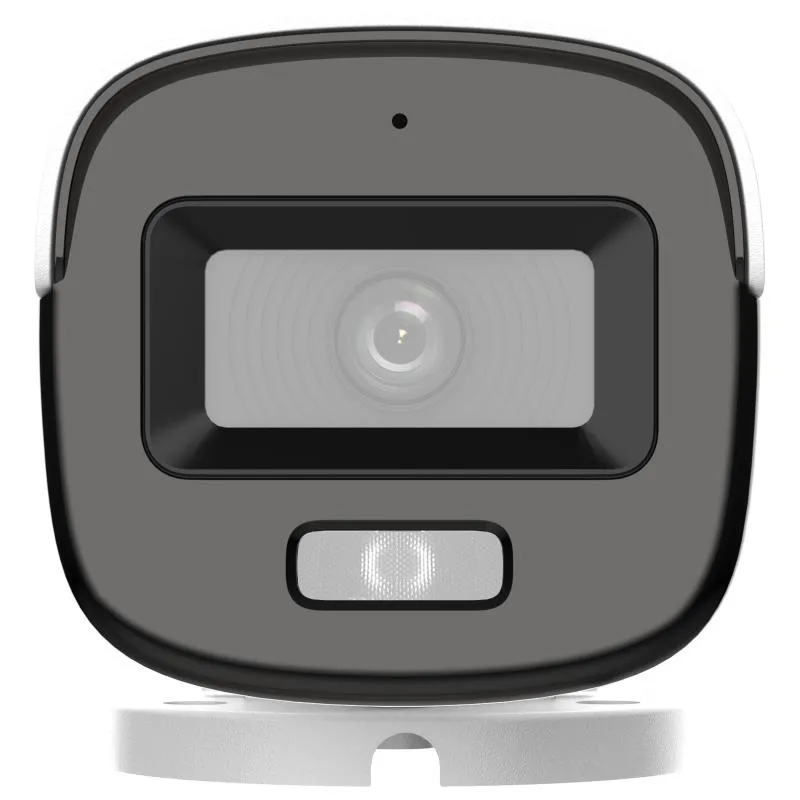

3K ColorVu Smart Hybrid Light Mini Bullet Camera
Product Features
1
High quality 3K resolution (2960 × 1665)
2
24/7 color imaging with F1.0 aperture
3
Available in 2.8 mm and 3.6 mm fixed focal lenses
4
Up to 20 m IR and white light distance for bright night imaging
5
Built-in mic with audio over coaxial cable
6
One port supports 4 switchable signals (TVI/AHD/CVI/CVBS)
7
Smart Hybrid Light for flexible lighting control
8
Water and dust resistant (IP67)
Technical Specifications
| Image Sensor | 3K CMOS |
| Signal System | PAL/NTSC |
| Resolution | 2960 (H) × 1665 (V) |
| Frame Rate | TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps CVI: 4 MP @25 fps/30 fps CVBS: PAL/NTSC |
| Min Illumination | 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Lens | 2.8 mm, 3.6 mm fixed focal lens |
| Field of View | 2.8 mm: Horizontal_FOV: 105°, Vertical_FOV: 60°, Diagonal_FOV: 143° 3.6 mm: Horizontal_FOV: 80° Vertical_FOV: 50°, Diagonal_FOV: 112° |
| Lens Mount | M12 |
| Day Night | ICR |
| WDR | Digital WDR |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
| Pickup Distance | In a radius of up to 5 m |
| Amount | 1 |
| Supplement Light Type | Smart, IR, White Light |
| Supplement Light Range | IR: Up to 20 m White Light: Up to 20 m |
| Day Night Mode | Auto/Color |
| White Light | Auto/Off |
| Image Mode | STD/HIGH-SAT/HIGHLIGHT |
| AGC | Yes |
| White Balance | Auto/Outdoor/Global/Manual |
| AE Mode | HLS; DWDR; BLC; HLC; Global |
| Noise Reduction | 2D DNR |
| Function | Smart IR; Brightness; Sharpness; AGC; Anti-Banding |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| Audio In | Built-in mic |
| Power | 12 VDC ± 25%, max.3.9 W |
| Power Recommendation | You are recommended to use one power adapter to supply the power for one camera. |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing) |
| Protection Level | IP67 |
| Material | Plastic |
| Communication | HIKVISION-C |
| Dimension | 161.1 mm × 70 mm × 70 mm (6.34" × 2.76" × 2.76") |
| Weight | Approx. 230 g (0.51 lb.) |
| Language | English |
