DS-2SE2C400MWG-E/14

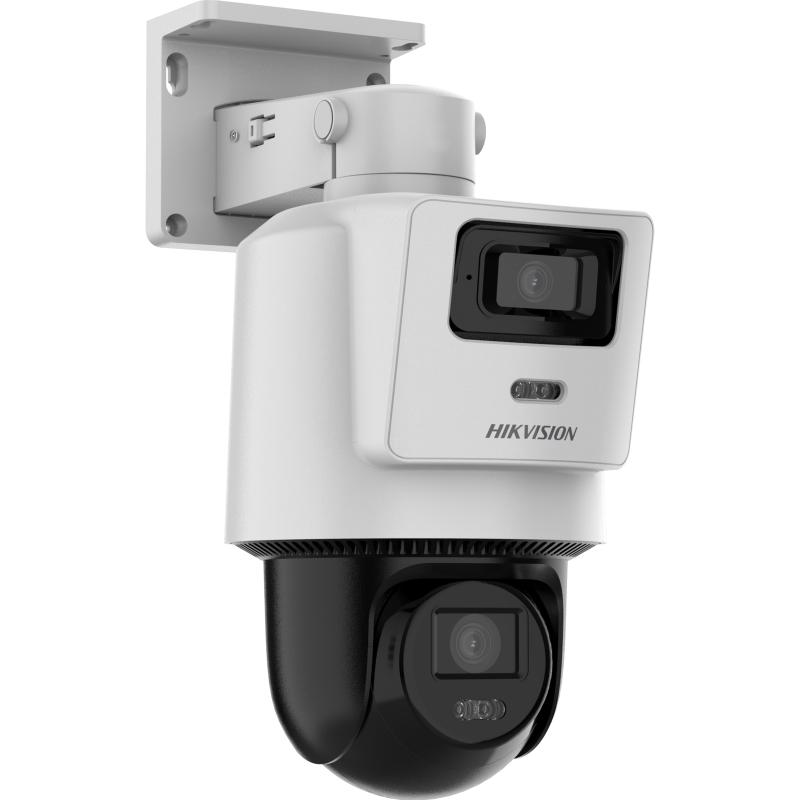

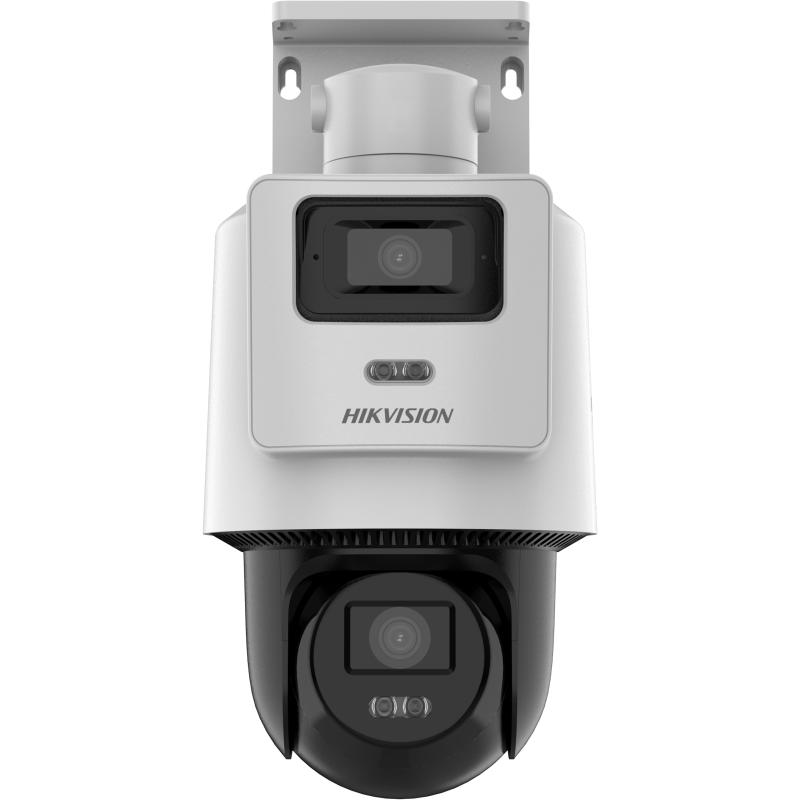

TandemVu 4MP+4MP Fixed Lens POE PT Network Camera
Product Features
1
4 MP resolution for clear, detailed imaging
2
Human and vehicle detection for enhanced security
3
Smart Hybrid Light with advanced long-range technology
4
Hik-Connect cloud service and app for remote management
5
Built-in microphone and speaker for real-time audio security
6
IP66 water and dust resistance for outdoor durability
Technical Specifications
| Image Sensor | [Bullet channel]: 1/2.8" Progressive Scan CMOS; [PTZ channel]: 1/2.8" Progressive Scan CMOS |
| Min Illumination | [Bullet channel]: Color: 0.005 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR; [PTZ channel]: Color: 0.005 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter Speed | 1 s to 1/30,000 s |
| Slow Shutter | Yes |
| Day Night | ICR |
| Max Resolution | [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440 |
| Focal Length | [Panoramic channel]: 2.8 mm, [PTZ channel]: 8 mm |
| FOV | [Panoramic channel]: Horizontal: 94°, Vertical: 49°, Diagonal: 114°; [PTZ channel]: Horizontal: 44°, Vertical: 24°, Diagonal: 51° |
| Aperture | [Bullet channel] F1.6, [PTZ channel] F1.6 |
| Scalable Video Coding | Yes |
| Region of Interest | 1 fixed region for main stream |
| Main Stream | [Bullet channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720); [PTZ channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub Stream | [Bullet channel]: 50 Hz: 25 fps (640 × 480, 640 × 360); 60 Hz: 30 fps (640 × 480, 640 × 360); [PTZ channel]: 50 Hz: 25 fps (640 × 480, 640 × 360); 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265/H.264/Smart264/Smart265; Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 4 Mbps |
| H264 Type | Baseline Profile, Main Profile, High Profile |
| H265 Type | Main Profile |
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1), 16 Kbps (G.726), 32 to 160 Kbps (MP2L2), 16 to 64 Kbps (AAC-LC), 8 to 160 Kbps (MP3), 8 to 48 Kbps (PCM) |
| Audio Sampling Rate | 8 kHz, 16 kHz |
| Environment Noise Filtering | Yes |
