networkcamera • NEW
DS-2SE3C204MWG-E/12

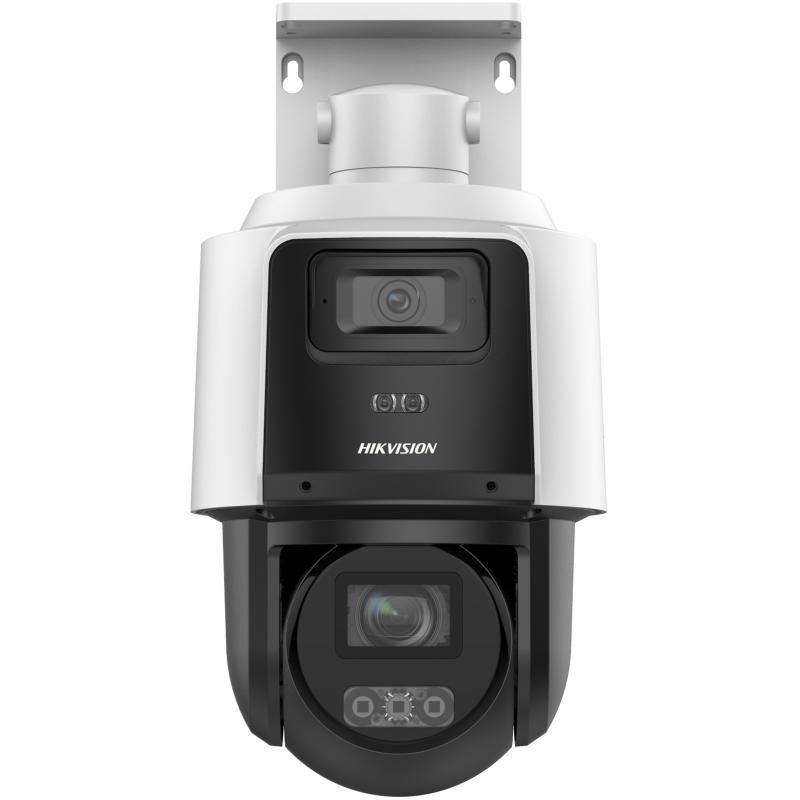

TandemVu 2MP+2MP 4X POE PTZ Network Camera
Product Features
1
2 MP resolution for high-quality imaging
2
Powered-by-DarkFighter technology for excellent low-light performance
3
4× optical zoom and 16× digital zoom for expansive area coverage
4
Supports WDR, HLC, BLC, 3D DNR, defog, and regional exposure/focus
5
12V DC & PoE+ support for flexible installation
6
Human and vehicle detection for enhanced security
Technical Specifications
| Image Sensor | [Bullet channel]: 1/2.8" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS |
| Min Illumination | [Bullet channel]: Color: 0.03 Lux @ (F2.0, AGC ON), B/W: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR; [PTZ channel]: Color: 0.01 Lux @ (F1.5, AGC ON), B/W: 0.005 Lux @ (F1.5, AGC ON), 0 Lux with IR; |
| Shutter Speed | 1 s to 1/30,000 s |
| Slow Shutter | Yes |
| Day Night | ICR |
| Zoom | [PTZ channel] 4 × optical, 16 × digital |
| Max Resolution | [Bullet channel] 1920 × 1080, [PTZ channel] 1920 × 1080 |
| Focus | Auto, Manual, Semi-auto |
| Focal Length | [Bullet channel]: 2.8 mm; [PTZ channel]: 2.8 to 12 mm, 4 × optical |
| Zoom Speed | [PTZ channel]: approx. 3.3 s |
| FOV | Bullet channel: Horizontal FOV 104.9°, Vertical FOV 57.9°, Diagonal FOV 122.8° PTZ channel: Horizontal FOV 92° to 33°, Vertical FOV 49° to 18.2°, Diagonal FOV 104° to 37.7° |
| Aperture | [Bullet channel] F2.0, [PTZ channel] F1.5 to F2.9 |
| Region of Interest | 1 fixed region for main stream |
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
| Sub Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | H.265, H.264, MJPEG |
| Video Bit Rate | 32 kbps to 16384 kbps |
| H264 Type | Main Profile, Baseline Profile, High Profile |
| H265 Type | Main Profile |
| Scalable Video Coding | Yes |
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC |
| Audio Bit Rate | MP2L2: 32 kbps to 160 kbps; AAC: 16 kbps, 32 kbps, 64 kbps; MP3: 8 kbps to 160 kbps |
| Audio Sampling Rate | MP2L2: 16 kHz, AAC-LC: 16 kHz, PCM: 8 kHz, 16 kHz, MP3: 8 kHz, 16 kHz |
| Environment Noise Filtering | Yes |
