networkcamera • NEW

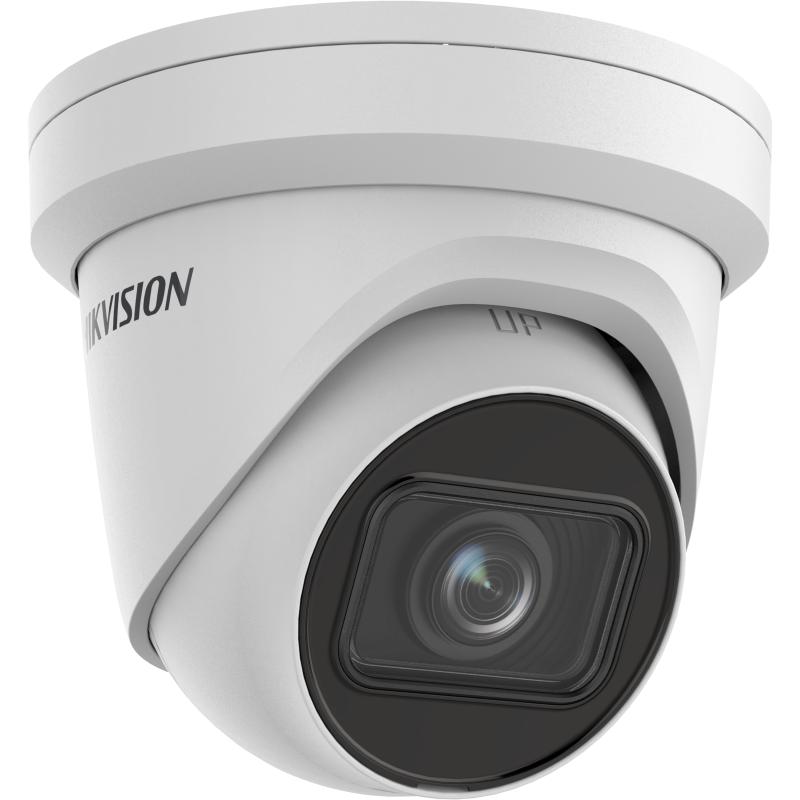

DS-2CD2H23G2-IZS
2 MP AcuSense Motorized Varifocal Turret Camera
Product Features
1
2 MP high-resolution imaging
2
Motorized varifocal lens for easy installation and monitoring
3
120 dB WDR for clear images in backlit environments
4
H.265+ compression for optimized storage
5
IP67 water and dust resistance, IK10 vandal-proof
6
Deep learning for human and vehicle classification
Technical Specifications
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max Resolution | 1920 × 1080 |
| Min Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Lens Type | Varifocal lens, motorized lens, 2.8 to 12 mm |
| Focal Length FOV | 2.8 to 12 mm: Horizontal FOV 106.6° to 31.7°, Vertical FOV 54.7° to 17.7°, Diagonal FOV 130.3° to 36.4° |
| Lens Mount | Ø14 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
| Sub Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main Stream: H.265/H.264/H.264+/H.265+ Sub Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H264 Type | Baseline Profile, Main Profile, High Profile |
| H265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding | H.264 and H.265 encoding |
| Region of Interest | 1 fixed region for main stream and sub-stream |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
