networkcamera • NEW
DS-2CD2786G2H-IPTRZS

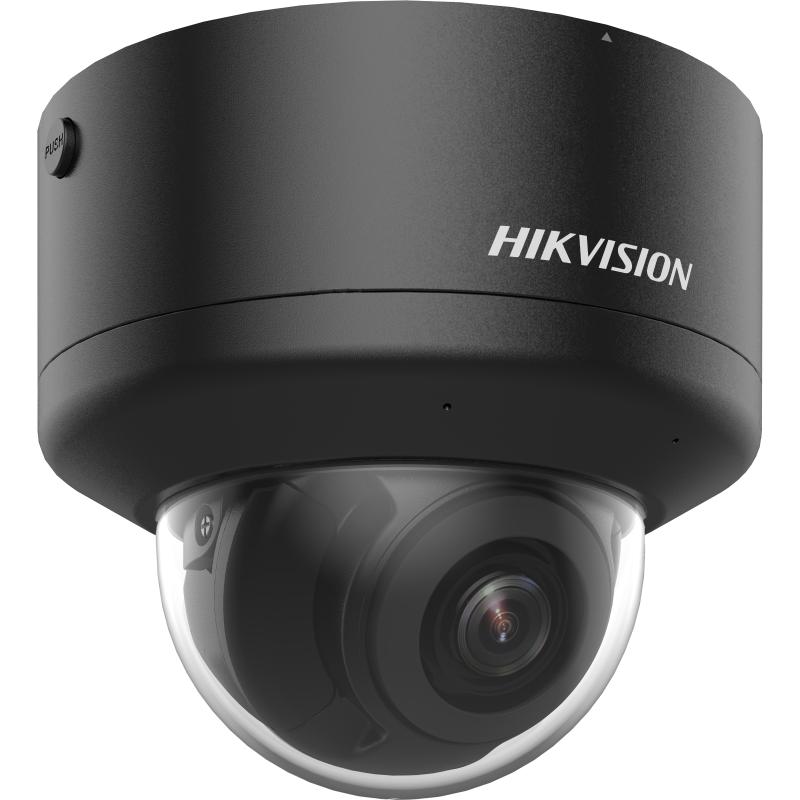

8 MP AcuSense PTRZ Varifocal Dome Network Camera
Product Features
1
Motorized pan, tilt, rotate, and zoom for easy setup and monitoring
2
Excellent low-light performance with DarkFighter technology
3
120 dB WDR for clear imaging in backlit environments
4
AI-driven human and vehicle detection
5
IP66 water and dust resistance, IK10 vandal-proof
6
Audio and alarm integration for enhanced security
Technical Specifications
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max Resolution | 3840 × 2160 |
| Min Illumination | Color: 0.0008 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day Night | IR cut filter |
| Angle Adjustment | Remote adjustment (Max. 1,000 cycles) Pan: 0° to 350°, Tilt: 0° to 85°, Rotate: 0° to 350° |
| Lens Type | Varifocal lens, motorized lens, 2.8 to 12 mm |
| Focal Length FOV | 2.8 to 12 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3° |
| Lens Mount | Integrated |
| Iris Type | Fixed |
| Aperture | Max. F1.2 |
| Depth of Field | 1 m to ∞ |
| Main Stream | 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Note: Third stream is supported under certain settings. |
| Video Compression | Main Stream: H.265/H.264/H.264+/H.265+ Sub Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264 Note: Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H264 Type | Baseline Profile, Main Profile, High Profile |
| H265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding | H.264 and H.265 encoding |
| Region of Interest | 1 fixed region for main stream and sub-stream include remaining |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 192 Kbps (MP2L2) / 8 to 320 Kbps (MP3) / 16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz / 16 kHz / 32 kHz / 48 kHz |
| Environment Noise Filtering | Yes |
