networkcamera • NEW
DS-2CD2383G2-LI(2U)

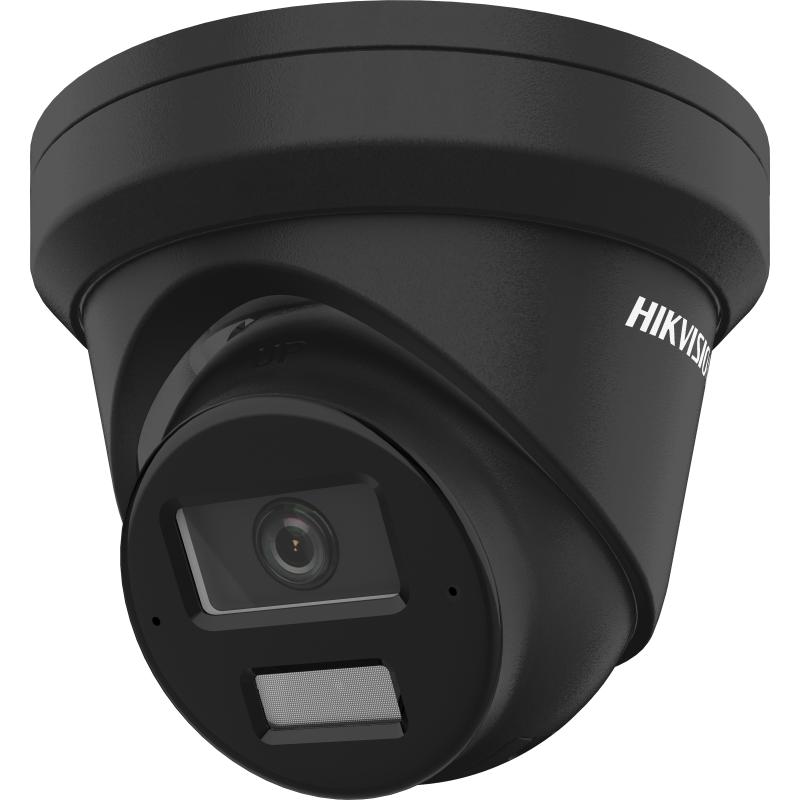

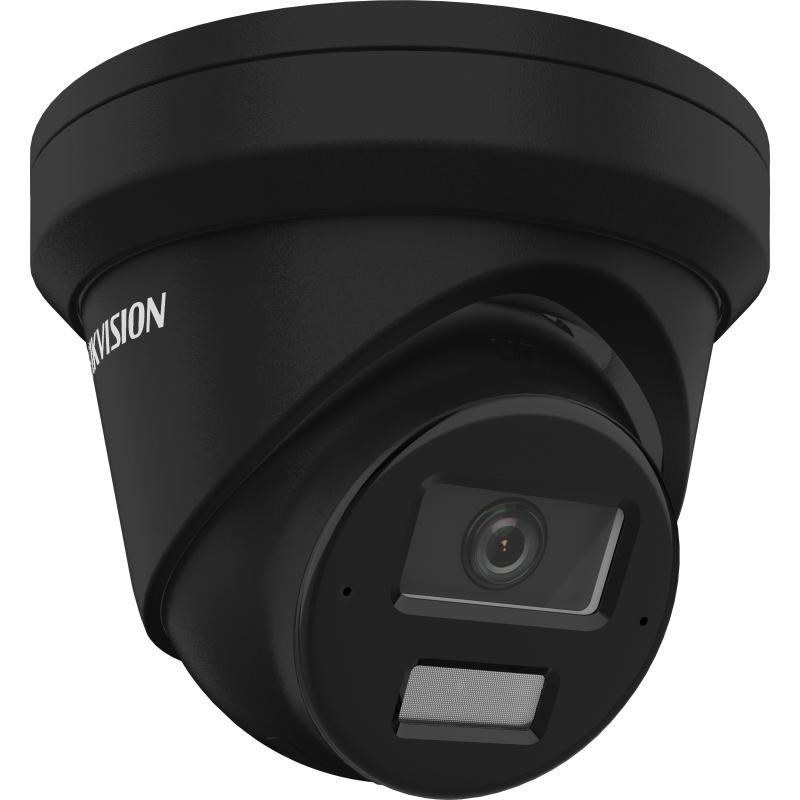

8 MP AcuSense Smart Hybrid Light Turret Camera
-1.DaHAaL07.png)
-2.P2vhxdBj.png)
-3.C_pN1bTD.png)
-4.BYZUgcxj.png)
Product Features
1
8 MP high-resolution imaging for clear surveillance
2
AcuSense technology for accurate human/vehicle detection
3
Smart Hybrid Light with IR and white light, 4 lighting modes
4
Built-in dual microphones for high-quality real-time audio
5
120 dB true WDR for strong backlight compensation
6
IP67-rated for water and dust resistance in outdoor environments
Technical Specifications
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max Resolution | 3840 × 2160 |
| Min Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length FOV | 2.8 mm: Horizontal FOV 108°, Vertical FOV 59°, Diagonal FOV 127° 4 mm: Horizontal FOV 88°, Vertical FOV 44°, Diagonal FOV 105° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Depth of Field | 2.8 mm: 1.7 m to ∞ 4 mm: 2.6 m to ∞ |
| Main Stream | 50 Hz: 20 fps (3840 × 2160), 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Note: Third stream is supported under certain settings. |
| Video Compression | Main Stream: H.265/H.264/H.264+/H.265+ Sub Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264 Note: Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H264 Type | Baseline Profile, Main Profile, High Profile |
| H265 Type | Main Profile |
| Scalable Video Coding | H.264 and H.265 encoding |
| Bit Rate Control | CBR, VBR |
| Region of Interest | 1 fixed region for main stream and sub-stream |
| Target Cropping | Yes |
| Audio Compression | -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | -2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | -2U: 8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering | -2U: Yes |
