networkcamera • NEW
DS-2CD1143G0-I

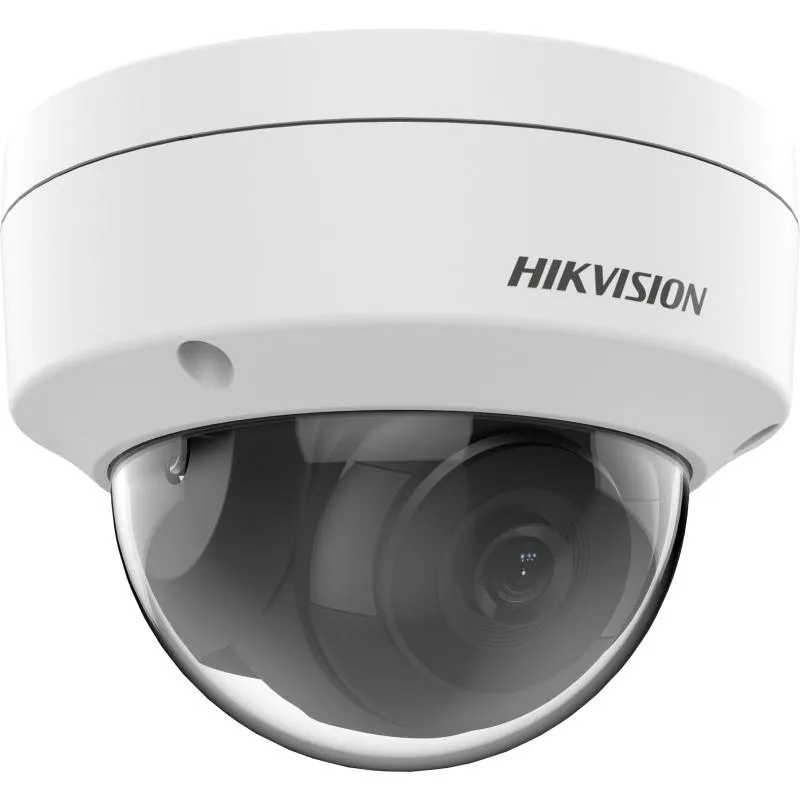

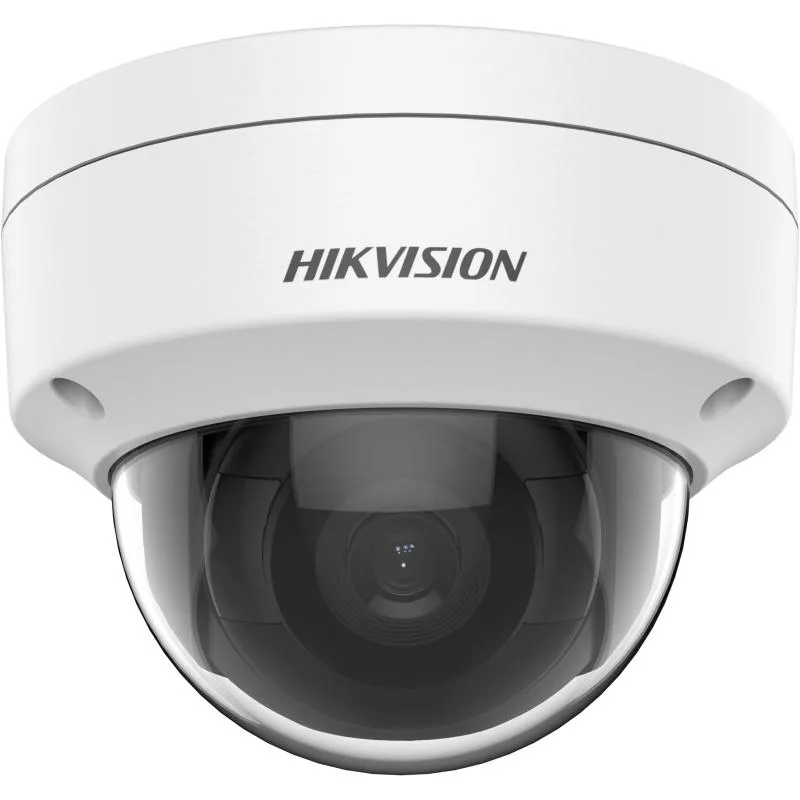

4 MP Fixed Dome Camera
Product Features
1
4 MP high-quality imaging for clear surveillance
2
H.265+ compression for efficient storage and bandwidth
3
120 dB WDR for clear imaging in strong backlight
4
IP67 water/dust resistance and IK10 vandal protection
5
EXIR 2.0 for advanced long-range infrared night vision
Technical Specifications
| Image Sensor | 1/3" progressive scan CMOS |
| Max Resolution | 2560 × 1440 |
| Min Illumination | Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°, Tilt: 0° to 75° |
| Focal Length FOV | 2.8 mm: Horizontal FOV 98.0°, Vertical FOV 53.1°, Diagonal FOV 114.7°; 4 mm: Horizontal FOV 78.7°, Vertical FOV 43.1°, Diagonal FOV 92.3° |
| Lens Mount | M12 |
| Focus | Fixed |
| Aperture | F2.0 |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Iris Type | Fixed |
| Main Stream | 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720) |
| Sub Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compression | Main Stream: H.265/H.264/H.264+/H.265+ Sub Stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H264 Type | Baseline Profile / Main Profile / High Profile |
| H265 Type | Main Profile |
| Region of Interest | ROI: 1 fixed region for main stream |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface, ISAPI |
| User Host | Up to 32 users. 3 levels: administrator, operator and user |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Day Night Switch | Auto, Schedule, Day, Night |
| Wide Dynamic Range | 120 dB |
| Image Enhancement | BLC, 3D DNR |
| Power | 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug; PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W |
| Material | Base: metal, cover: plastic |
| Dimension | Ø111 mm × 82.4 mm (Ø 4.4" × 3.2") |
| Package Dimension | 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3") |
| Weight | Approx. 360 g (0.8 lb.) |
| With Package Weight | Approx. 560 g (1.2 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F), Humidity: 95% or less (non-condensing) |
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F), Humidity: 95% or less (non-condensing) |
| Language | English, Ukrainian |
| General Function | Anti-banding, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
