networkcamera • NEW

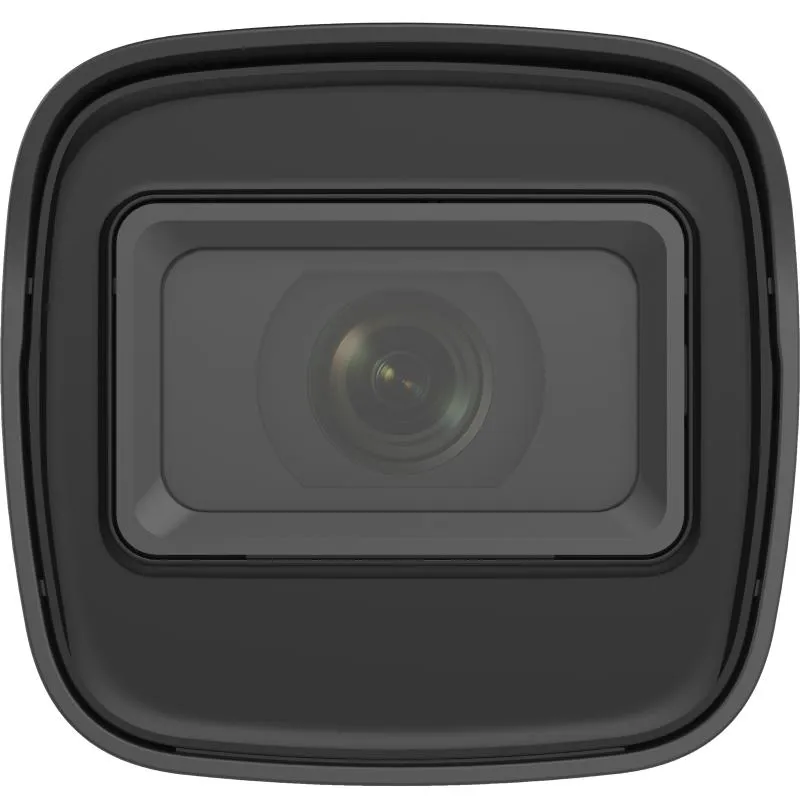

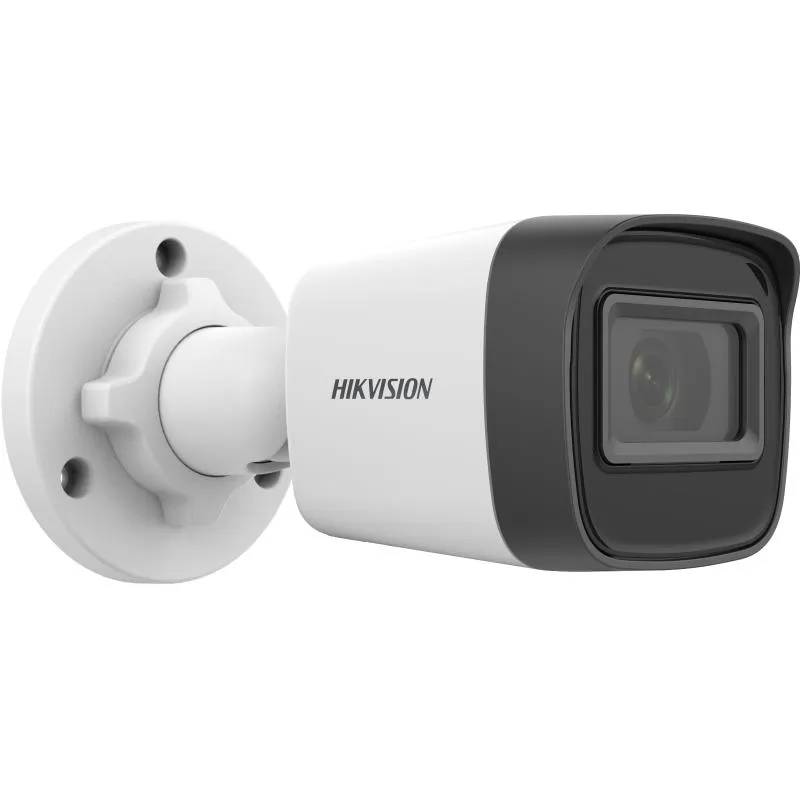

DS-2CD1021G0-I
2 MP Fixed Bullet Network Camera
Product Features
1
High quality imaging with 2 MP resolution
2
IP67-rated water and dust resistance for outdoor durability
3
Easy installation with Power over Ethernet (PoE) technology
Technical Specifications
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Max Resolution | 1920 × 1080 |
| Min Illumination | Color: 0.01 Lux @ (F2.2, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length FOV | 2.8 mm: Horizontal FOV 94°, Vertical FOV 51°, Diagonal FOV 112°; 4 mm: Horizontal FOV 80°, Vertical FOV 44°, Diagonal FOV 94° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F2.2 |
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
| Sub Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub Stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H264 Type | Baseline Profile, Main Profile, High Profile |
| H265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, security audit log, host authentication (MAC address) |
| Simultaneous Live View | Up to 6 channels |
| API | ISAPI, SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, UDP, QoS |
| User Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Client | iVMS-4200 |
| Web Browser | Plug-in required live view: IE 10, IE 11; Local service: Chrome 57.0+, Firefox 52.0+ |
| Wide Dynamic Range | Digital WDR |
| SNR | ≥ 52 dB |
| Day Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Power | 12 VDC ± 25%, 0.41 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W |
| Material | Plastic |
| Dimension | 138.8 mm × 60.9 mm × 57.9 mm (5.5" × 2.4" × 2.3") |
| Package Dimension | 163 mm × 75 mm × 75 mm (6.4" × 3.0" × 3.0") |
| Weight | Approx. 175 g (0.4 lb.) |
| With Package Weight | Approx. 250 g (1.1 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | English, Ukrainian |
| General Function | Heartbeat, anti-banding, mirror, password protection, password reset via email |
