iDS-6716HUHI-M

16CH 5MP H.265 AcuSense DVR

iDS-6716HUHI-M
iDS-6716HUHI-M 1

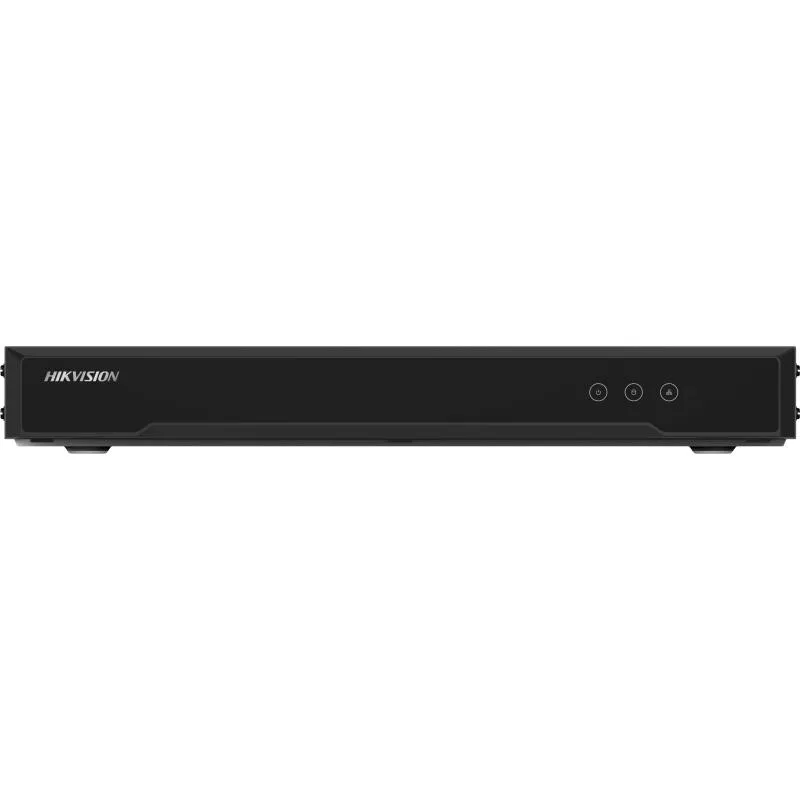

iDS-6716HUHI-M 2

Product Features

1

16-channel DVR with 2 HDD bays (1U design)

2

AI-powered human/vehicle classification for false alarm reduction

3

H.265 Pro+ compression for efficient storage

4

Supports encoding up to 8MP @ 8fps and 5MP @ 12fps

5

5-in-1 video input: HDTVI, AHD, CVI, CVBS, IP

6

Connect up to 24 network cameras

Request Information

Technical Specifications

IP Video Input
Channels: 8-ch (up to 24-ch)
Resolution: Up to 8 MP
Supported Formats: H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
Channels: 16-ch
Interface: BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
CVBS InputPAL/NTSC
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDTVI Input8 MP, 5 MP, 4 MP, 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
AHD Input5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
HDCVI Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
Audio Output1-ch, RCA (Linear, 1 KΩ)
Audio Input4-ch, RCA (2.0 Vp-p, 1 KΩ)
Two Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
Main Stream: 8 MP@8 fps / 5 MP@12 fps / 4 MP@15 fps / 3 MP@18 fps / 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub Stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate32 Kbps to 10 Mbps
Dual StreamSupport
Stream TypeVideo, Video & Audio
Audio CompressionG.711u
Audio Bitrate64 Kbps
Remote Connection128
Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Power Supply12 VDC
Consumption≤ 19 W
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity10% to 90%
Dimension384 × 317 × 52 mm (15.1 × 12.5 × 2.0 inch)
Weight≤ 2 kg (4.4 lb)
