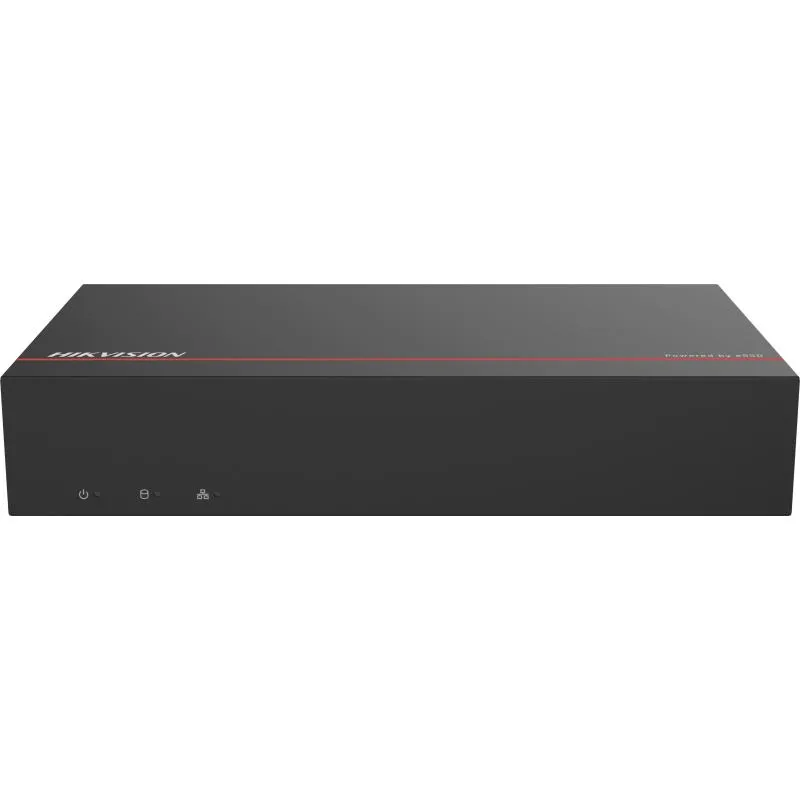

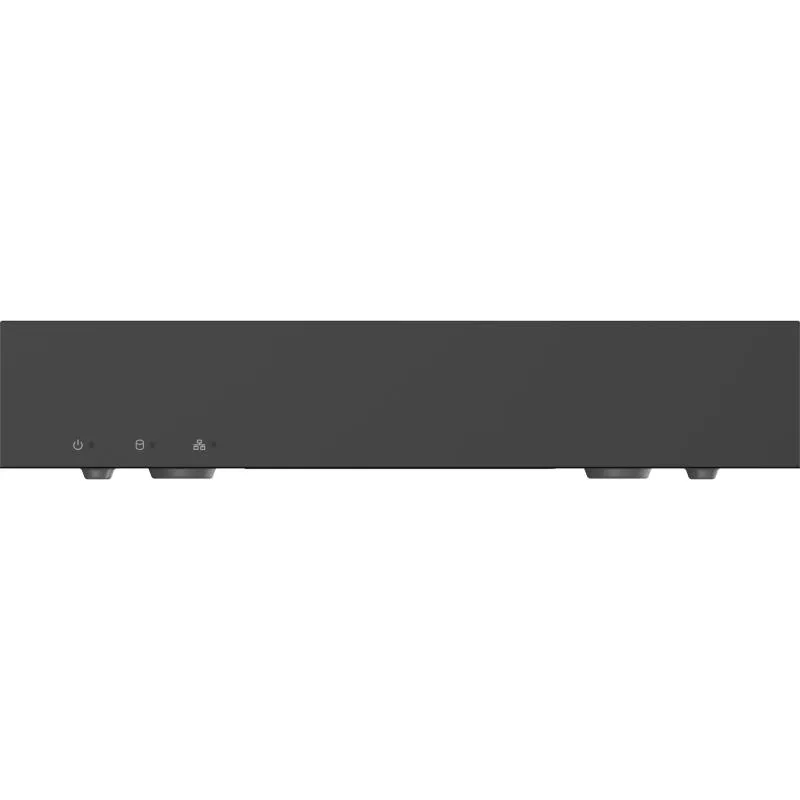

DS-E16HGHI-XB

16CH 1080p Lite H.265 eSSD DVR

DS-E16HGHI-XB
DS-E16HGHI-XB 1
DS-E16HGHI-XB 2
DS-E16HGHI-XB 3
DS-E16HGHI-XB 4

Product Features

1

Powered by fast M-SATA eSSD technology

2

AI-based Motion Detection 2.0 for human/vehicle classification

3

Scene-adaptive bitrate for efficient compression

4

Supports 1080p Lite @ 15 fps encoding

5

Low power usage for energy efficiency

6

Audio supported via coaxial cable

Request Information

Technical Specifications

IP Video Input
Channels: 2-ch
Resolution: Up to 5 MP
Support: H.265+/H.265 IP cameras
Analog Video Input
Channels: 16-ch

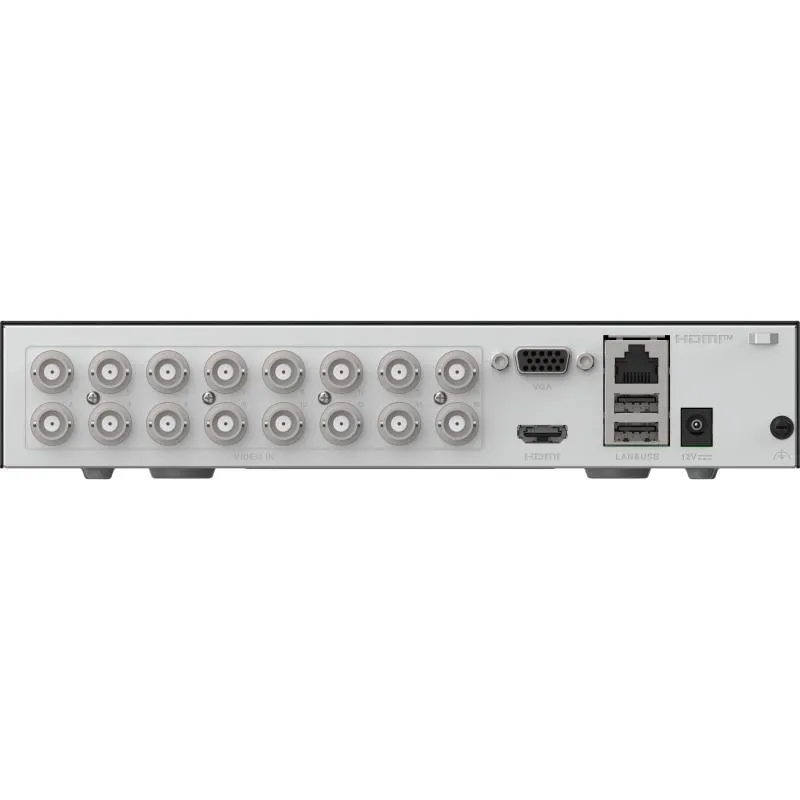

Interface: BNC (1.0 Vp-p, 75 Ω), supports coaxitron connection
HDTVI Input
1080p25:
1080p30:
720p25:
720p30:
AHD Input
1080p25:
1080p30:
720p25:
720p30:
HDCVI Input
1080p25:
1080p30:
720p25:
720p30:
CVBS InputSupport
HDMI Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output ModeHDMI/VGA simultaneous output
Audio Input16-ch via coaxial cable
Audio Output1-ch via HDMI
Synchronous Playback16-ch
Video CompressionH.265 Pro/H.265
Encoding Resolution
1080p Lite:
720p:
720p Lite:
WD1:
4CIF:
CIF:
QVGA:
Frame Rate
Main Stream: 1080p Lite/720p/WD1/4CIF@25 fps (P)/30 fps (N)
Default: 1080p Lite/720p is 15 fps by default
Sub Stream: For 1080p and 720p stream access: CIF/QVGA@15 fps
Video BitrateScene-adaptive bitrate control to ensure recording stability
Stream TypeVideo, Video & Audio (Audio recording must be manually enabled)
Audio CompressionG.711u
Audio Bitrate64 Kbps
Total Bandwidth96 Mbps
Incoming Bandwidth8 Mbps
Remote Connection128
Network Protocol
TCP/IP:
DHCP:
Hik-Connect:
DNS:
DDNS:
NTP:
SADP:
SMTP:
NFS:
UPnP™:
HTTPS:
Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Power Supply12 VDC, 1 A
Consumption≤ 9.5 W (with eSSD)
Working Temperature-10 °C to 45 °C (14 °F to 113 °F)
Working Humidity10% to 90%
Dimension235 × 137 × 47 mm (9.3 × 5.4 × 1.9 inch)
Weight≤ 0.8 kg (with eSSD, 1.1 lb.)
